Specifications
|
Model Name |

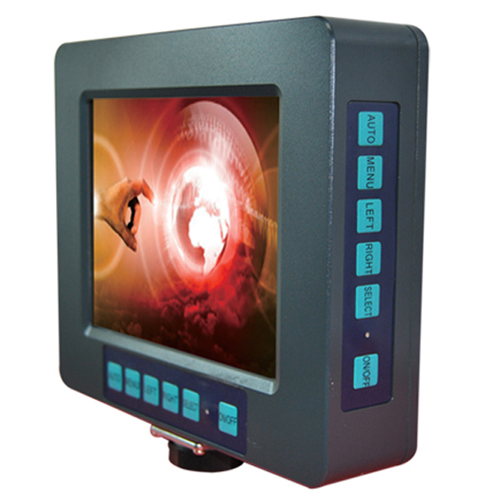

AMG-06IPMI01T1 |
|
Screen Size |
6.5" |
|
Active Display Area (mm) |
132.48(H)x99.36(V) |
|
Pixel Pitch (mm) |
0.207(H)x0.207(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
640x480 |
|
Contrast Ratio |
600:1 |
|
Display Color |
16.2M/262k colors |
|
Brightness (CD/㎡) |
800 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
160 (H); 140 (V) |
|
Response Time(Typ.Tr+Tf) |
25ms |
|
Signal Connector |
WeiPu WY28-24(VGA) |
|
Power Consumption |
DC 12V/24V |
|
Dimension(VxHxT) |
192x160x45 |
|
Ingress Protection |
IP67 |
|
Operating Temperature |
-30~80℃ |
|
Storage Temperature |
-30~80℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
